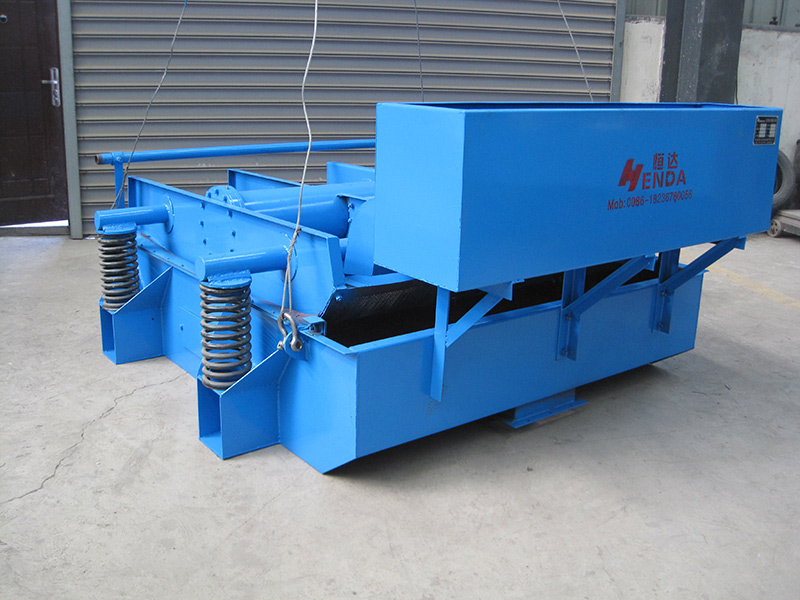

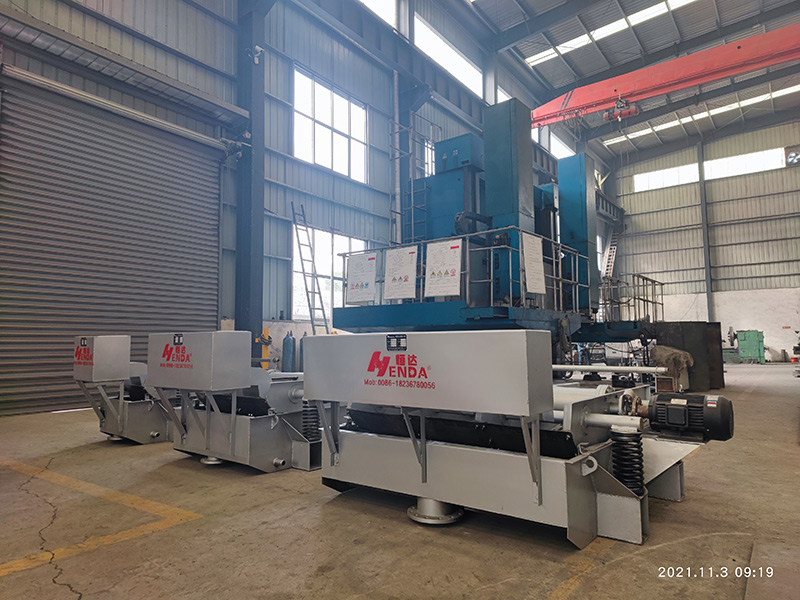

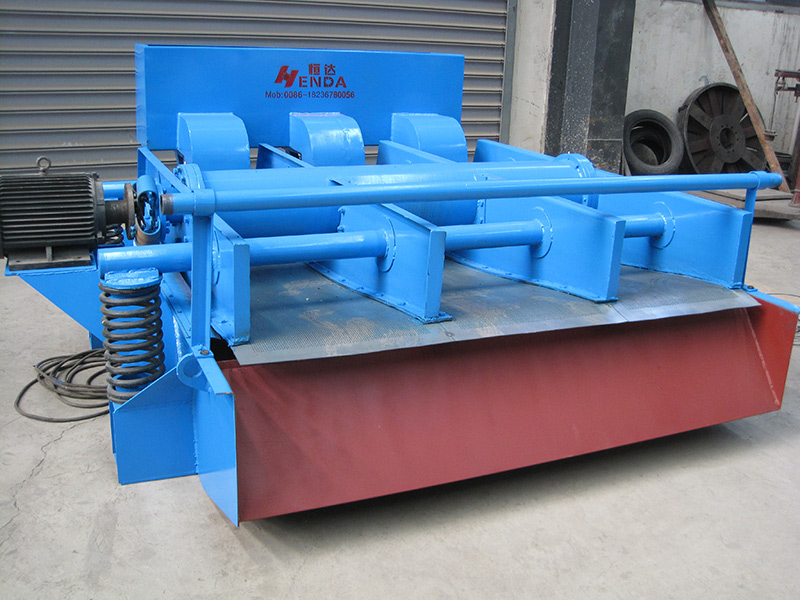

Vibrating Screen

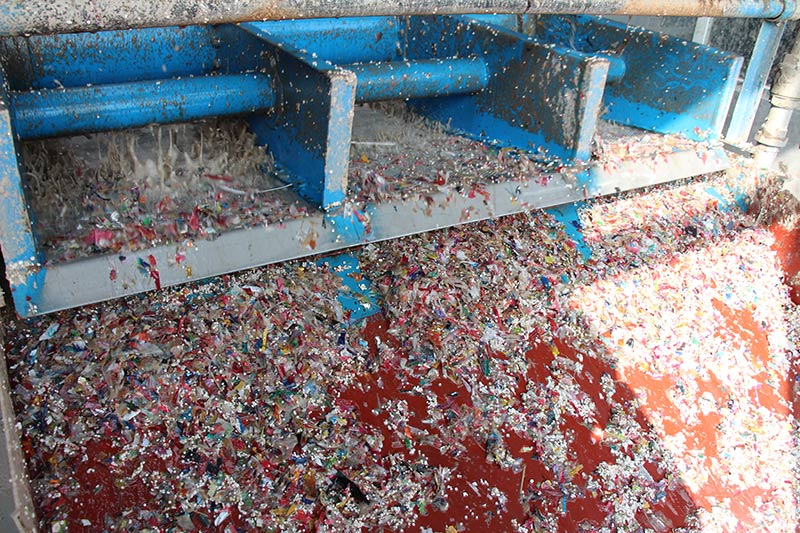

The vibrating screen has a reasonable design, strong screening capacity, self-cleaning function, high efficiency, energy-saving, low noise, and convenient maintenance. It is advanced screening equipment in China. It is mainly used for screening coarse pulp in the pulp and paper industry.
Detail
Salient Features
Strong screening ability.
Self-cleaning effect.
Easy operation and maintenance
Technical Data
| Model | ZSK1 | ZSK2 | ZSK3 | ZSK4 | |
| Screen Area（㎡） | 1 | 2 | 3 | 4 | |
| Pulp Consistency(%) | Hole Screen (%) | 1—1.5 | |||
| Slot Screen (%) | 0.5—0.8 | ||||
| Capacity: (T/D) | Hole Screen (T/D) | 7.5—25 | 15—50 | 22.5—75 | 30—100 |
| Slot Screen (T/D) | 3.5—7.5 | 7—15 | 10.5—22.5 | 14—30 | |
| Motor Power: (Kw) | 2.2 | 3 | 4 | 5.5 | |
