Pulp Machine

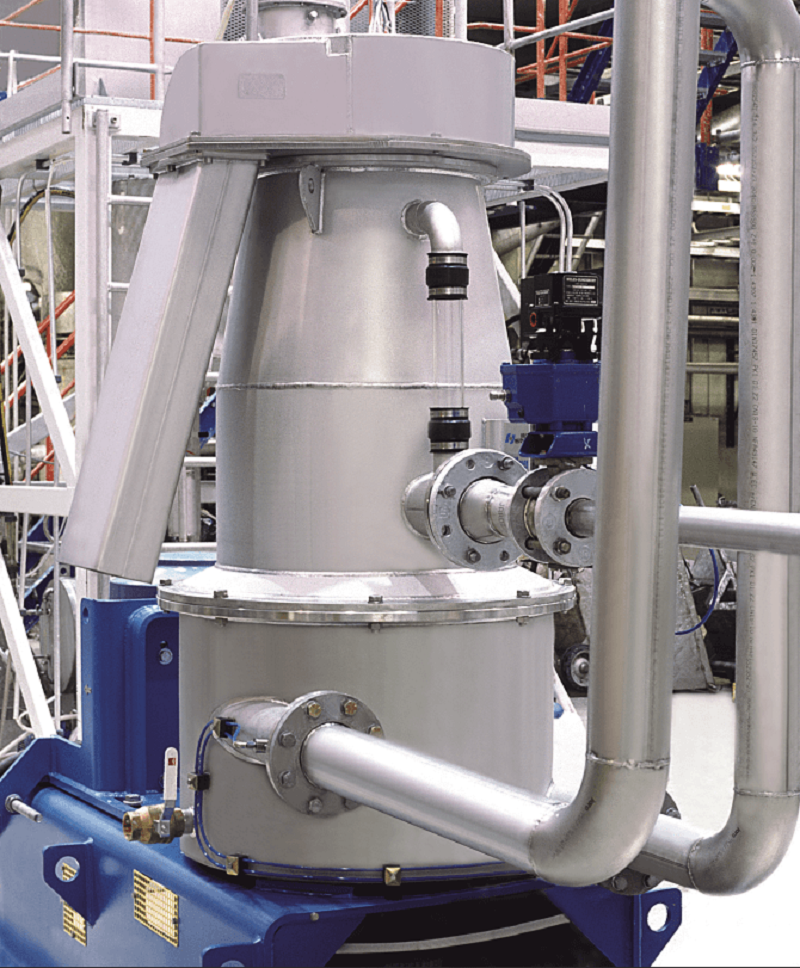

Tailing Screen
No packing seal or mechanical seal is required in the upper drive device, which will reduce maintenance costs.
Detail
Combined screening separates heavy reject and light reject effectively, which will improve efficiency.
Light reject that above the liquid level is spun off by centrifugal force, which is high dry degree and less fiber loss.
It is a combination of Defibering, screening, dehydration, cleaning production, high fiber yield.
Technical Data
| Model | Capacity（T/D） | Max. Consistency（%） | Speed（RPM） | Motor Power （KW） | Inlet Pressure （BAR） | Outlet Pressure （BAR） | Pressure Drop （BAR） | Flush Water Flowrate （L/min） |
| TS4M | ≤70 | 3.0 | 465 | 85 | 1.4-1.6 | 0.6-0.8 | 0.4-0.8 | 200 |
| TS6M | ≤150 | 3.0 | 420 | 175 | 1.3-1.7 | 0.6-0.8 | 0.4-0.8 | – |
