Pulp Machine

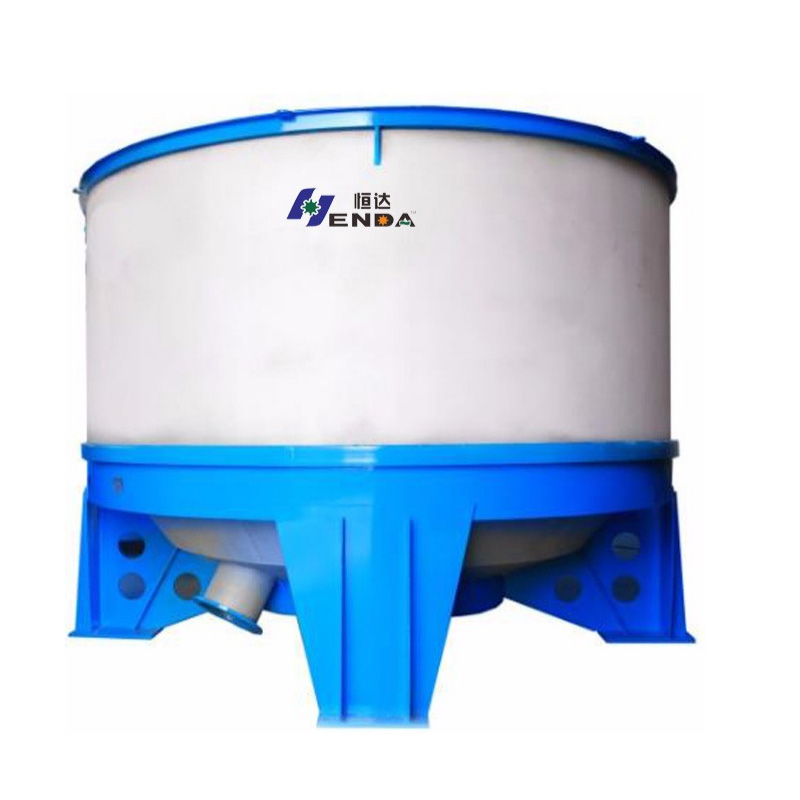

Mid Consistency Pulper
M.C. Hydrapulper is mainly used for separating waste paper and ink under high consistency in the waste paper deinking process.
Detail
High pulping consistency (less than 7.5%), improves pulping efficiency and lowers energy and water consumption.
Continuous type operation.

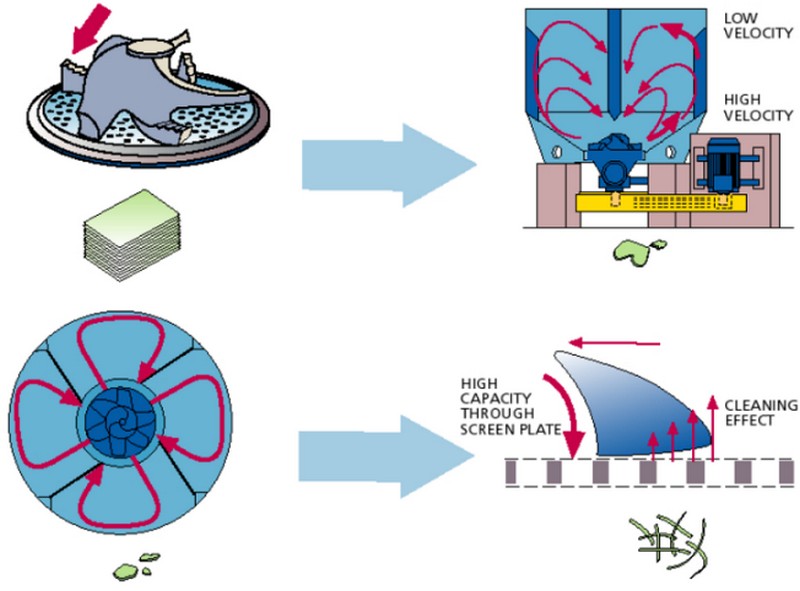

Special spiral rotors effectively promote the circulation and rollover of pulp, reinforce friction between fibers. Finally, achieve gentle pulp under high consistency, fiber will not be broken in the process of fiber relief and deinking.

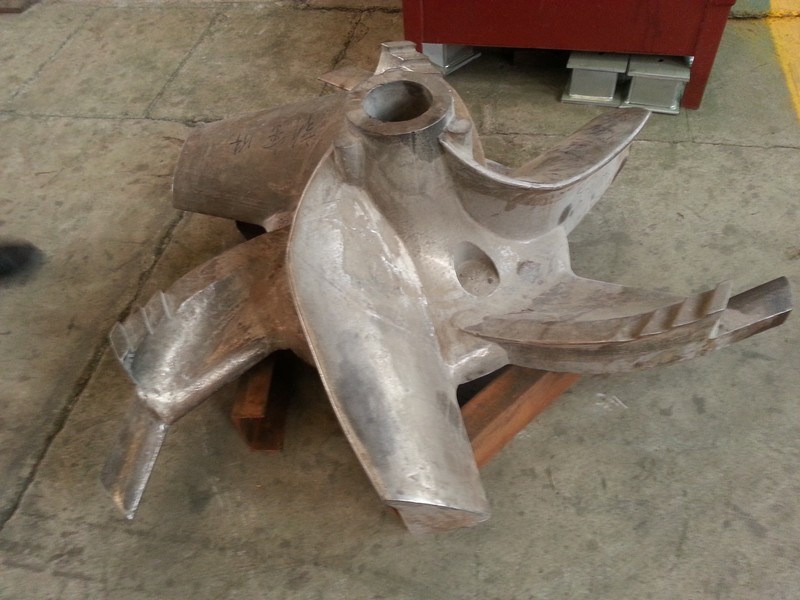

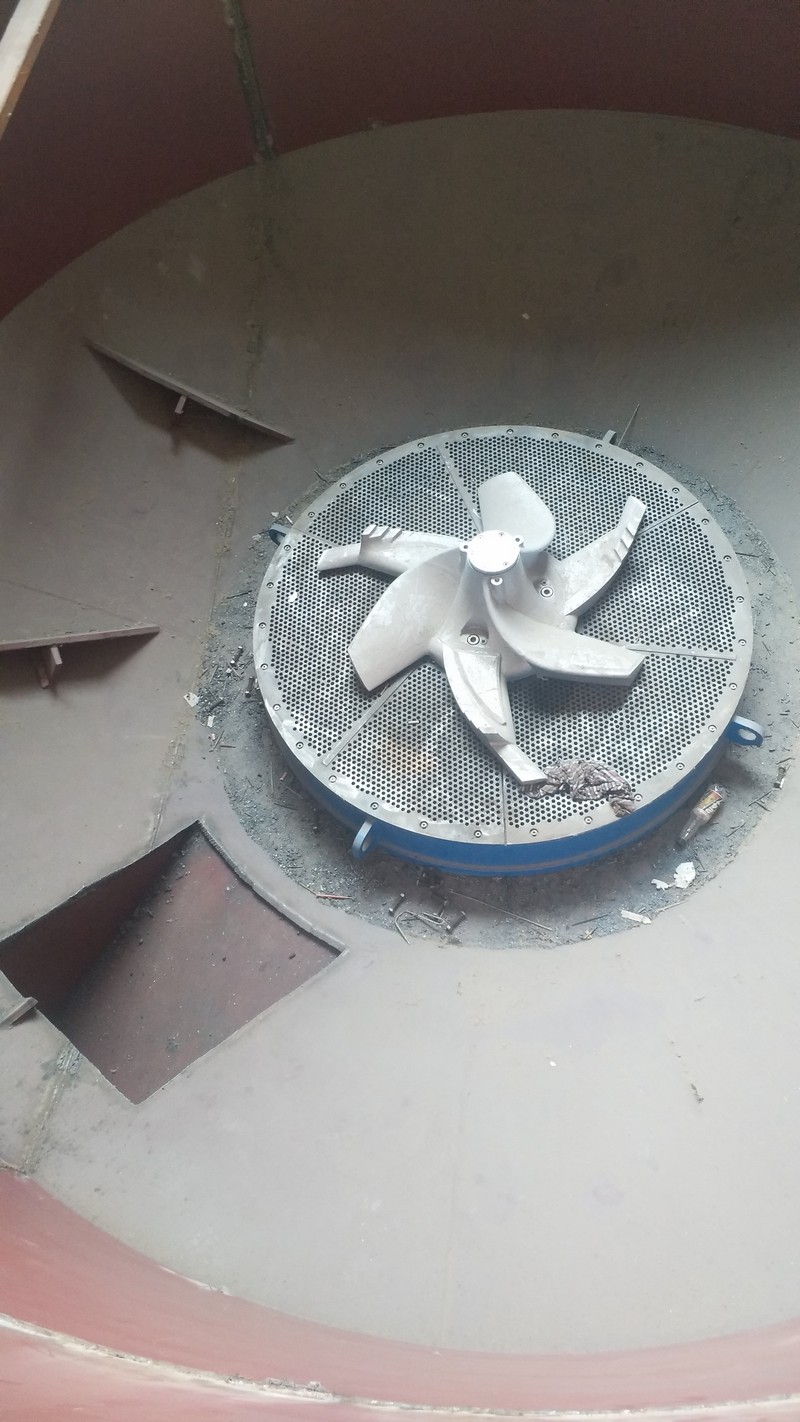

Energy-saving S type Vokes rotor, the adjustable gap between rotor and sieve plate guarantees the pulping effect.
Technical Data
| Model | ZDSZ24 | ZDSZ25 | ZDSZ26 | ZDSZ27 | ZDSZ28 | ZDSZ29 |
| Normal Volume(m3) | 10 | 15 | 20 | 25 | 30 | 40 |
| Consistency(%) | 5-8 | |||||
| Production capacity(t/d) | 40-60 | 60-90 | 80-120 | 120-170 | 140-190 | 220-290 |
| Motor power(KW) | 90 | 132 | 185 | 220 | 250 | 315 |
