High(Mid) Density Cleaner
High(Mid) Density Cleaner

High(Mid) Density Cleaner is mainly applied to remove all kinds of heavy impurities in paper pulp, like staples, stones, glasses, etc.

Drop us a line
Detail

Large observation window, easy to operate and control.
The separation cone has a long cone angle and high slag removal efficiency.
The cone is made of wear-resistant ceramic material with long service life.
The optimized volute-type pulp inlet chamber has a strong eddy current capacity and obvious low-pressure zone partition, which is conducive to the complete separation of pulp and impurities.
Special quick opening slag discharge control valve, sufficient slag discharge, and convenient operation.

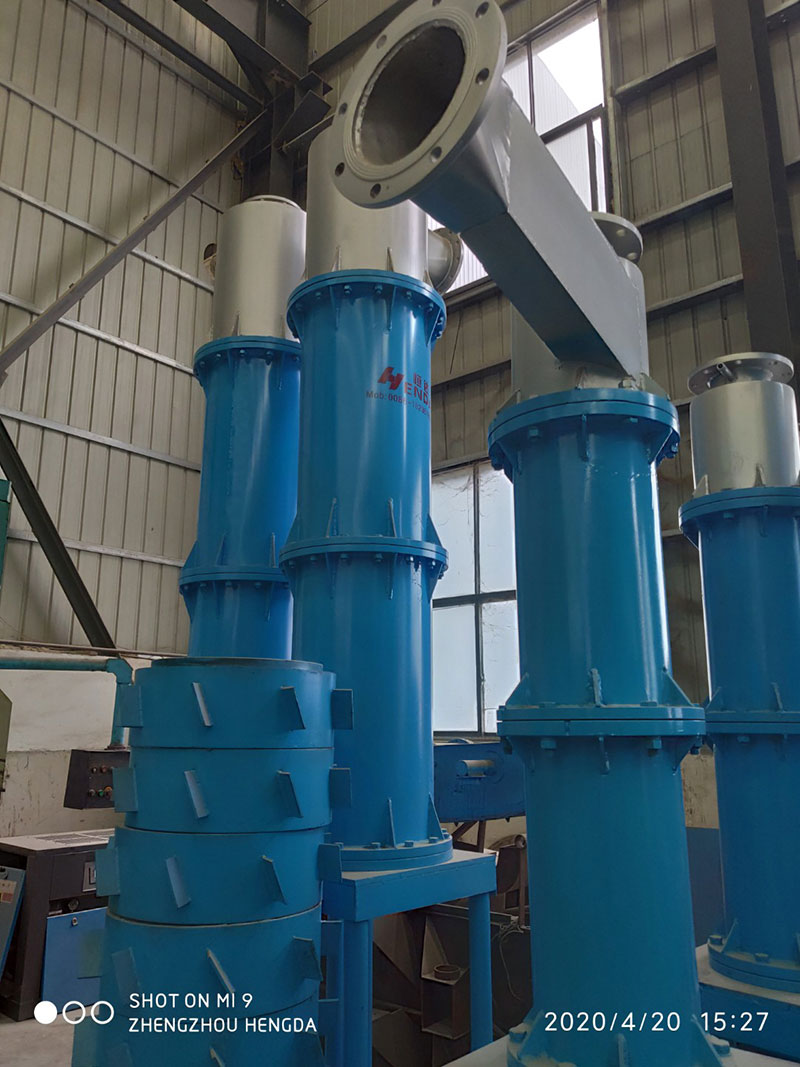

high(mid) density cleaner 2

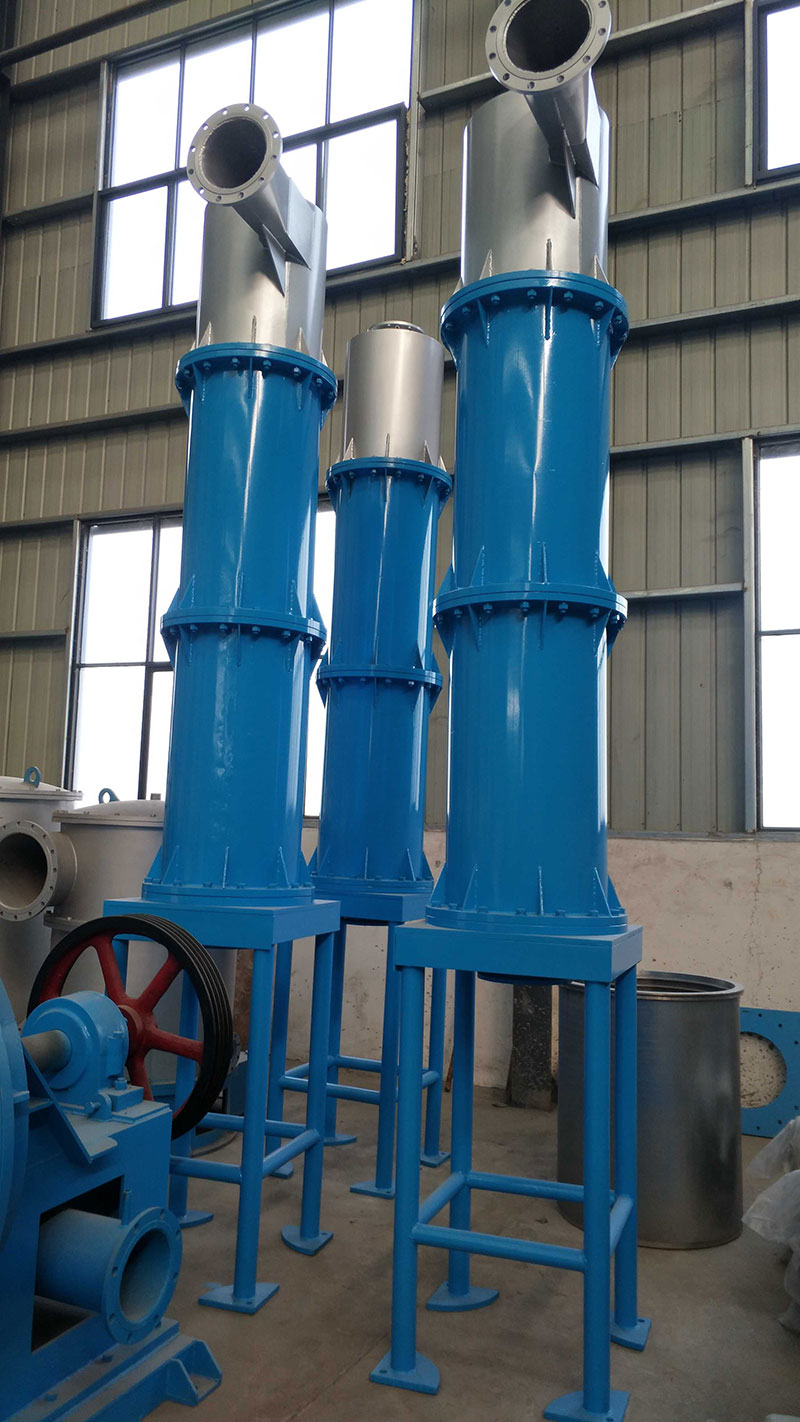

high(mid) density cleaner 3

Technical Data(HCC)

ModelHD2HD3HD4HD5HD6HD7HD8
Flow Rate(L/min)800-12001200-18001800-25002500-35003500-45004500-65006500-8000
Concentration of input pulp (%)2-5
Pressure of input pulp (Mpa)0.3
Discharging modeAuto/Intermittence/Continuous

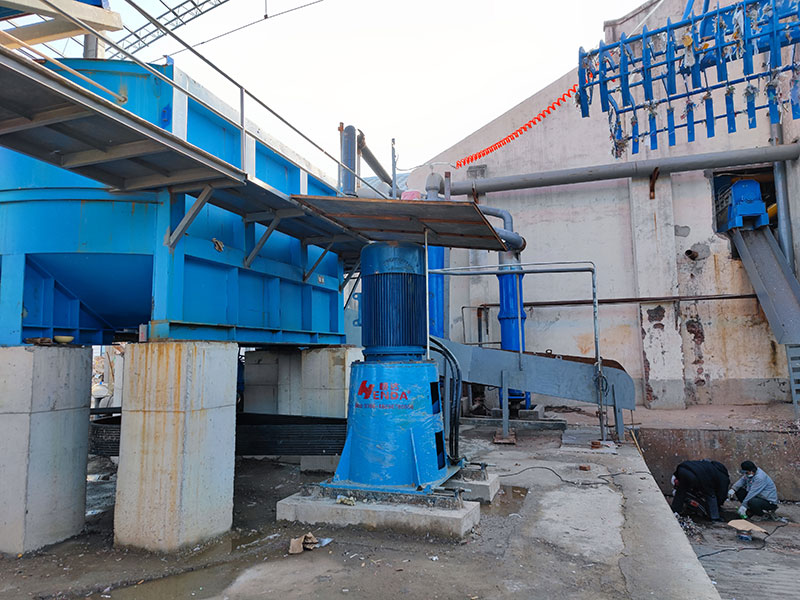

high(mid) density cleaner 4

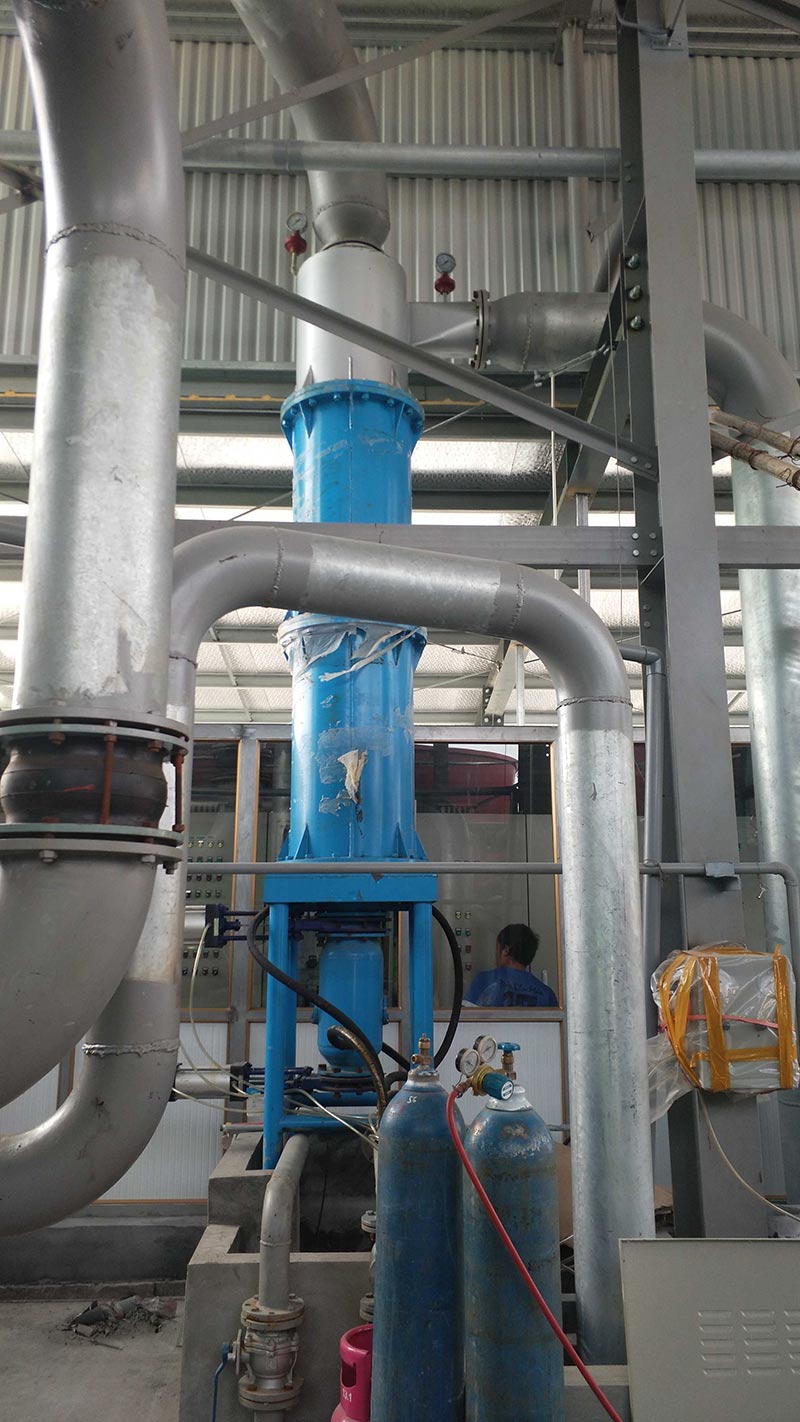

high(mid) density cleaner 5
