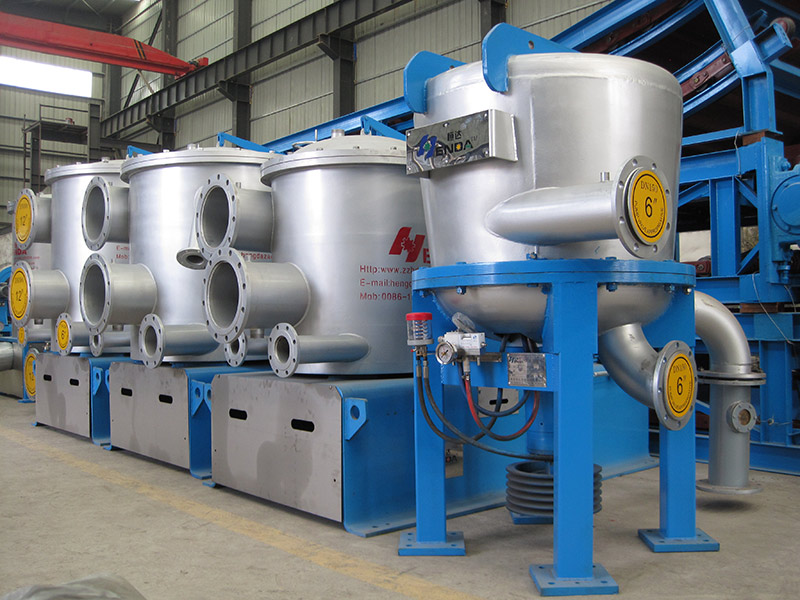

Flotation cleaner(also known as apple screen, for its shape looks like apple) can efficiently remove light impurities in paper pulp and it also can be used for dealing with tail pulp in the coarse screening section of the pulp manufacturing line.

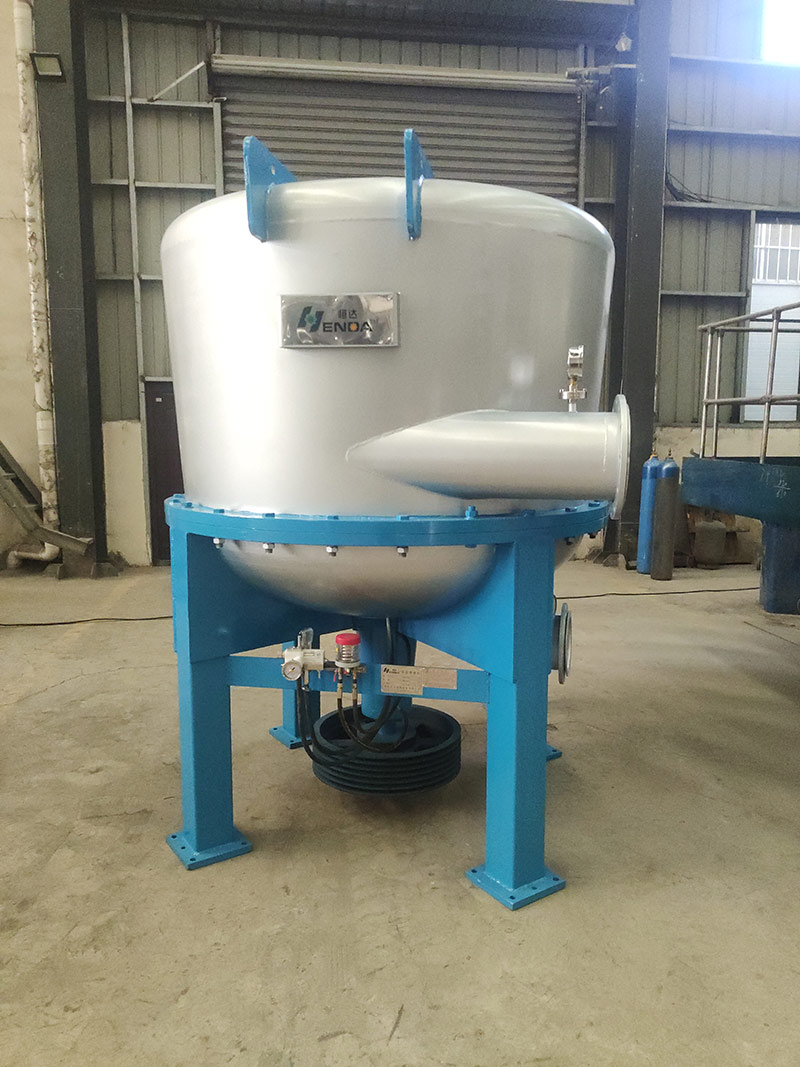

The main body is an inverse conical design, concave top structure, can form a strong vortex, forming a low-pressure area in the top center and getting the light impurities and discharge them outside effectively.

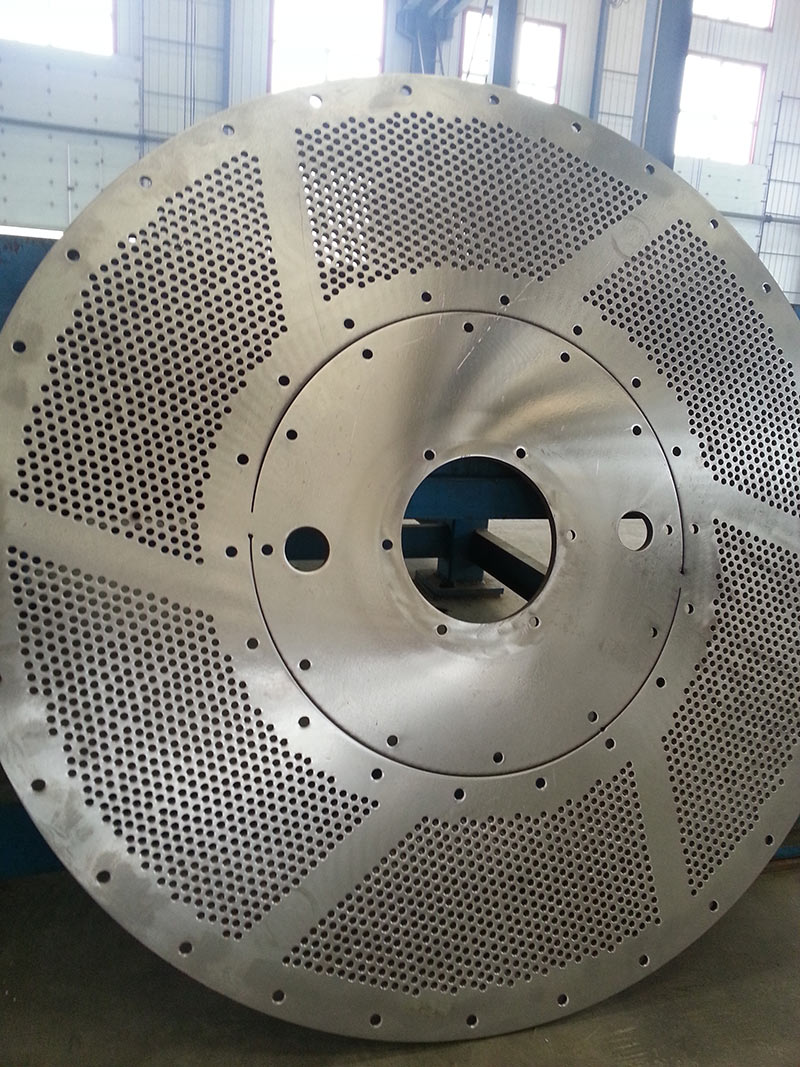

Pulp outflow chamber of the rotor is higher than undersurface of shell, forming a low-pressure area around the rotor to collect heavy impurities. Under centrifugal force, the heavy impurities are thrown to the outermost of the eddy and deposited in the groove that is outside the sieve plate for discharging. At the same time, it will reduce the wear to cutter and sieve plate, prolong their service life of them.
Technical Data
| Model | FQJ0.4 | FQJ0.8 | FQJ1.5 | FQJ2 |
| Nominal Volume(m3) | 0.4 | 0.8 | 1.5 | 2 |
| Treating Consistency(%) | 0.5-2 | |||
| Production Capacity(t/d) | 35-45 | 65-85 | 80-110 | 110-140 |
| Motor Power(kw) | 30 | 55 | 90 | 110 |
