Pulp Machine

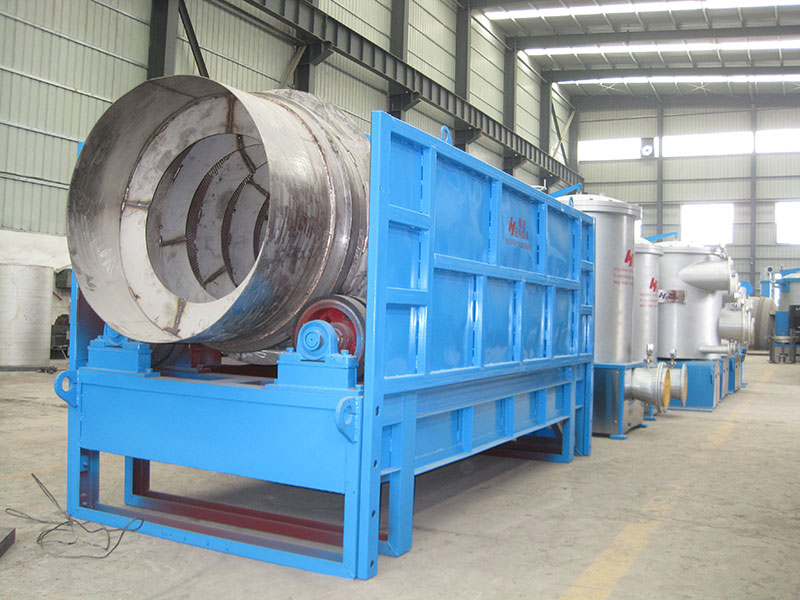

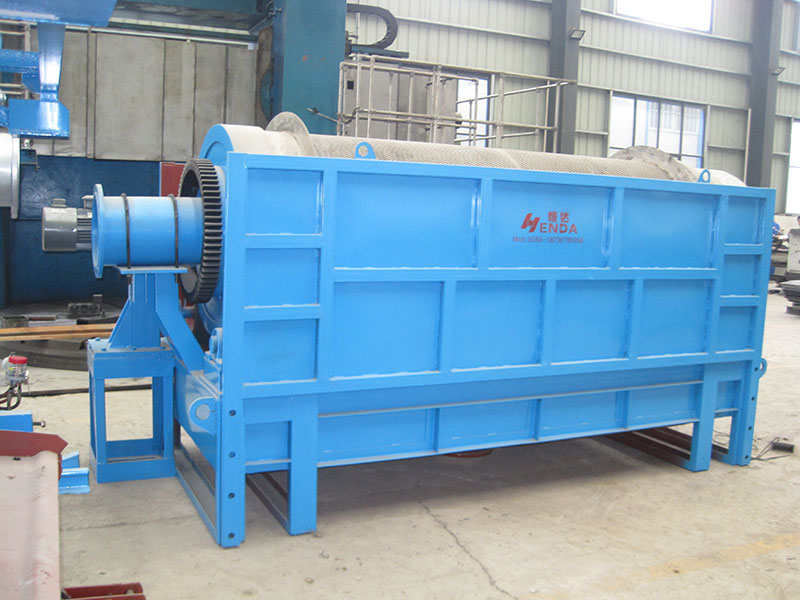

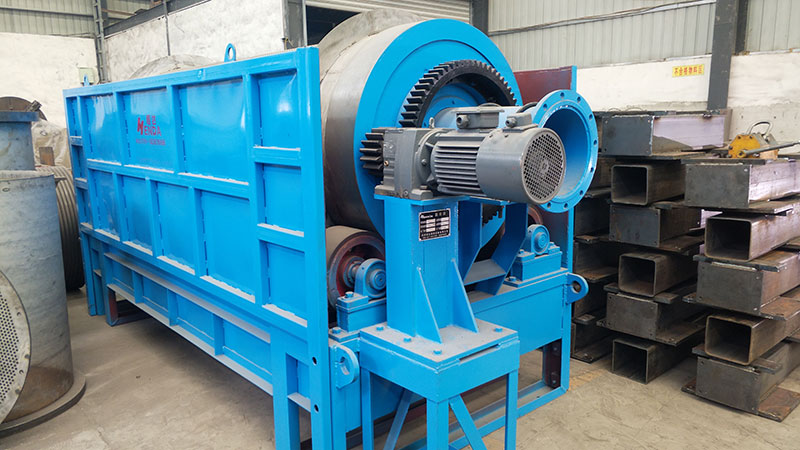

Drum Screen
Drum screen is used to remove light impurities in the recycled paper pulping system.
Detail
The screening effect is good and the power consumption is low.
Simple structure, reliable operation, and simple maintenance.
Combined belt drive, smooth operation, low noise.
Technical Data
| Model | ZST1A | ZST2A | ZST4A |
| Diameter of screen drum(mm) | Φ1000 | Φ1500 | Φ2000 |
| Passing capacity(L/min) | 3000-5000 | 6000-8000 | 9000-12000 |
| Motor power(Kw) | 4 | 5.5 | 11 |
