Drum Pulper
Drum Pulper

This Drum type of hydra pulper is mainly used in the paper making industry to break continuously and coarse screening of the waste paper material under the high consistency. It can maximum keep the physical property of the fiber.
Used for the continuous beating and rough screening of wastepaper stock in high consistency(14%~22%)

Drop us a line
Detail

Compact pulping and screening ability, lower maintenance cost.
Save energy and waste consumption. Pulping with high consistency (14%-22%), continuous pulping and reject discharge, reduce the energy consumption for the auxiliary and following equipment.
Improve the quality of stock, keep fiber length and strength, and increase the quality of the product. Low maintenance costs.


drum pulper 2



Technical Data

ModelZG2500ZG2750ZG3000ZG3250
Drum Diameter (mm)Φ2500Φ2750Φ3000Φ3250
Processing Capacity(t/d)70-120140-200200-300240-400
Work capacity(%)14-18
Motor  power(Kw)132-160160-200280-315315-400
TypeZG3500ZG3750ZG4000ZG4250
Drum Diameter (mm)Φ3500Φ3750Φ4000Φ4250
Processing Capacity(t/d)400-600550-800750-10001000-1400
Work capacity(%)14-18
Motor  power(Kw)560-630630-800800-10001000-1400

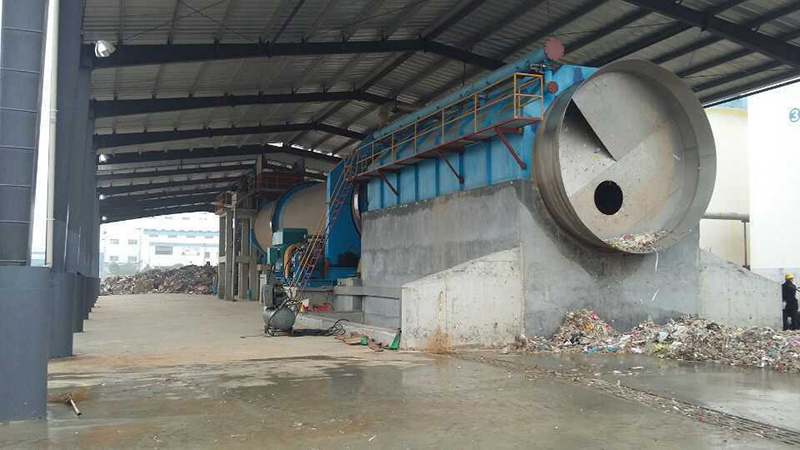

drum pulper 3

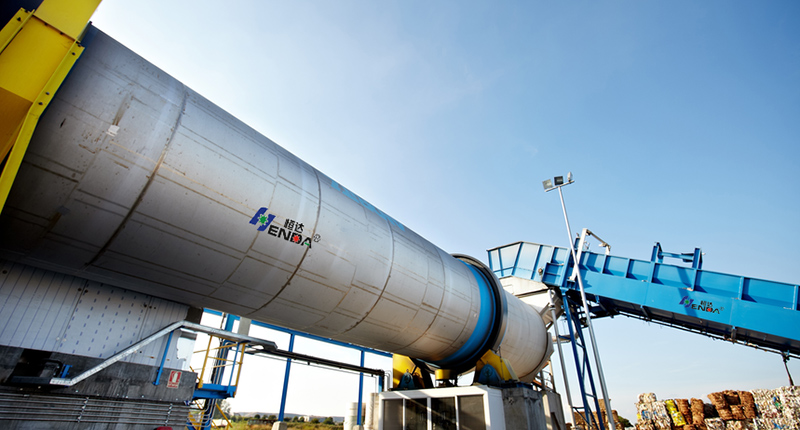

drum pulper 4
