Pulp Machine
Disc Thickener
This equipment is a continuous rotary concentration equipment, which is mainly used for dehydration and concentration of mechanical wood pulp, waste pulp, reed pulp, bamboo pulp, common residue pulp, straw pulp, and other pulp materials with low free degree (high beating degree), short fiber or high pulp concentration.
Detail
Salient Features
Used to wash and thicken low consistency pulp.

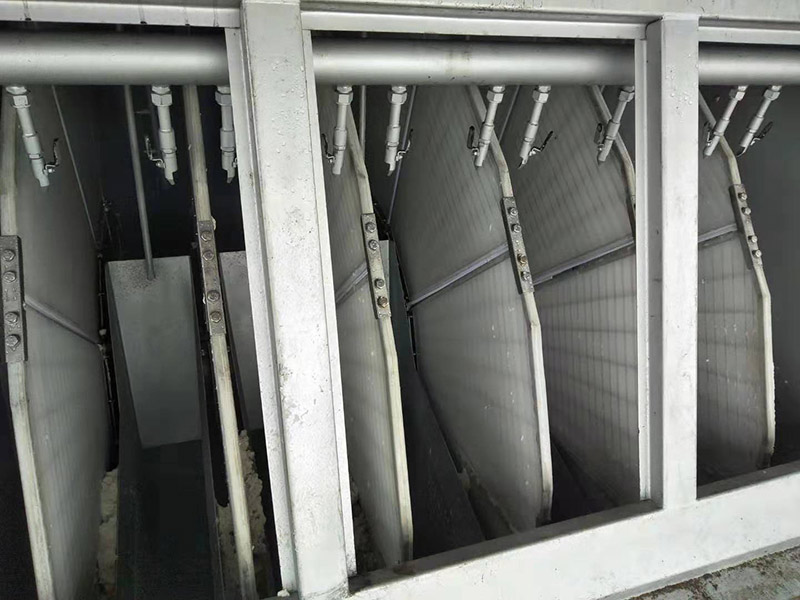

A combined disc-type filter drum increases the filter area greatly. Less space requirement, but large production capacity.
Stainless steel filter screen, long service life.
Reasonable structure for pulp cleaning and stripping. The filter screen is not easy to block. Dewatering capacity is good.
Technical Data
| Model | ZNHD25 | ZNHD35 | ZNHD45 | ZNHD55 |
| Disc diameter：(mm) | 2500 | 3500 | 4500 | 5500 |
| Area：(㎡) | 8.5 | 16.7 | 26 | 38 |
| Number of sector plates：(disc) | 12 | 14 | 16 | 18 |
