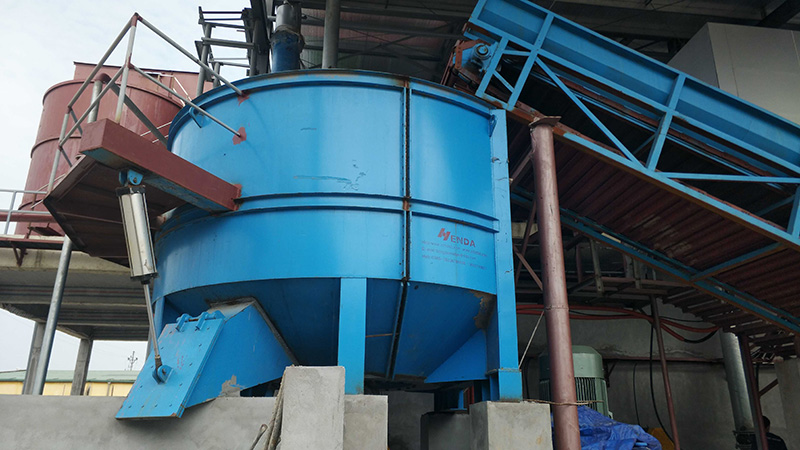

This equipment adopts D type structure, which improves the work efficiency, and it can be used for pulping waste paper & wet strength paper.
New type energy-saving VOKES rotor strengthens hydraulic circulation and fiber relief.
D type structure changes pulp flow ways, making contact between pulp and rotor more quick and frequent. The mechanical action is enhanced, pulping time is shortened so that the capacity is improved.

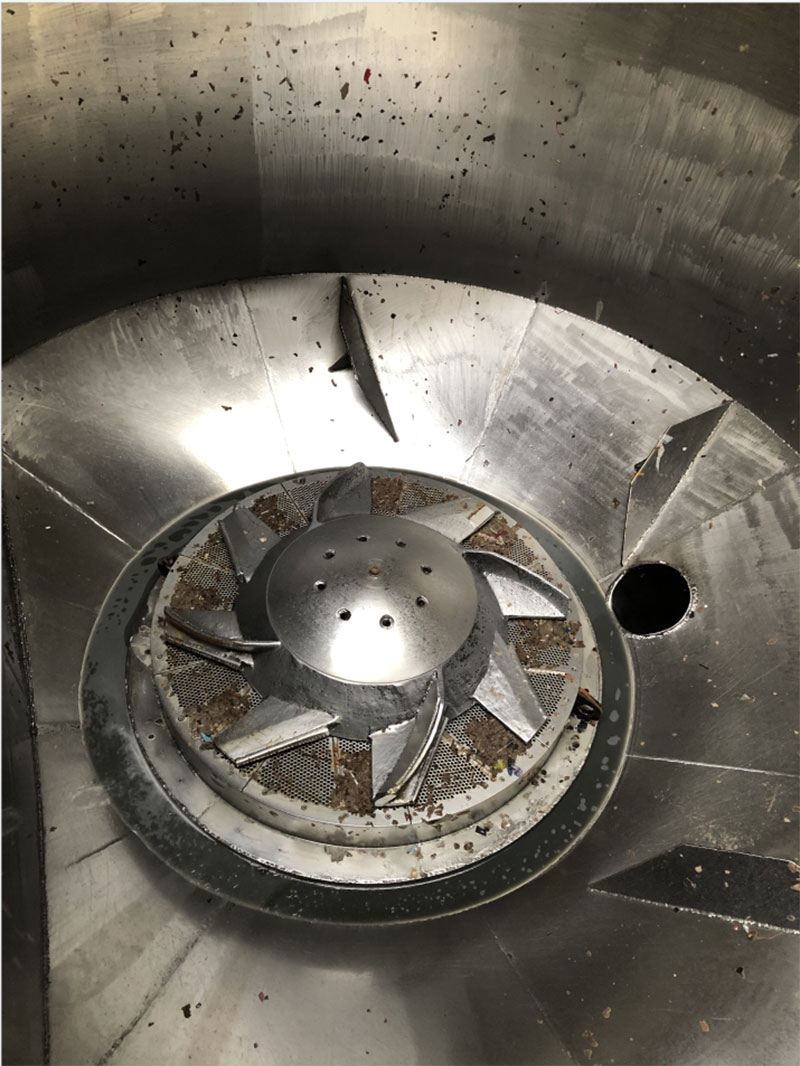

The pulp chamber of the rotor is higher than the under the surface of the pulper barrel, forming a low-pressure area around the rotor to collect heavy impurities, reduce wear to the cutter head and sieve plate. So that can prolong the rotor and sieve plate service life.
Adjustable gap between rotor and sieve plate ensures the pulping effect.
Technical Data
Model | ZDSD23 | ZDSD24 | ZDSD25 | ZDSD26 | ZDSD27 | ZDSD28 |
Volume(m3) | 5 | 10 | 15 | 20 | 25 | 30 |
Concentration(%) | 3-5 | |||||
Capacity(t/d) | 20-60 | 60-100 | 90-120 | 140-180 | 180-230 | 230-280 |
Motor Power (KW) | 75 | 110 | 160 | 185 | 220 | 280 |
Model | ZDSD29 | ZDSD30 | ZDSD31 | ZDSD32 | ZDSD33 | ZDSD34 |
Volume(m3) | 35 | 40 | 50 | 60 | 70 | 85 |
Concentration(%) | 3-5 | |||||
Capacity(t/d) | 260-330 | 300-380 | 370-450 | 450-550 | 550-650 | 650-800 |
Motor Power (KW) | 315 | 355 | 450 | 560 | 710 | 800 |
