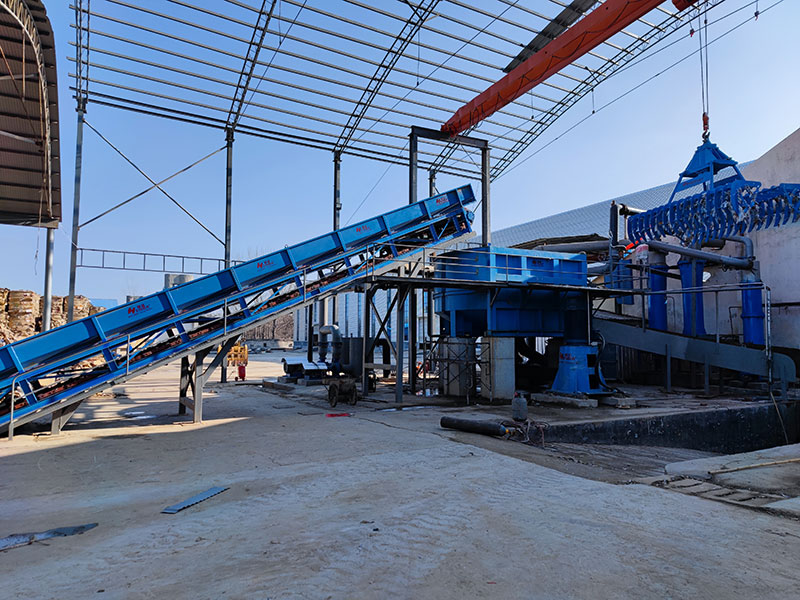

Chain Conveyor

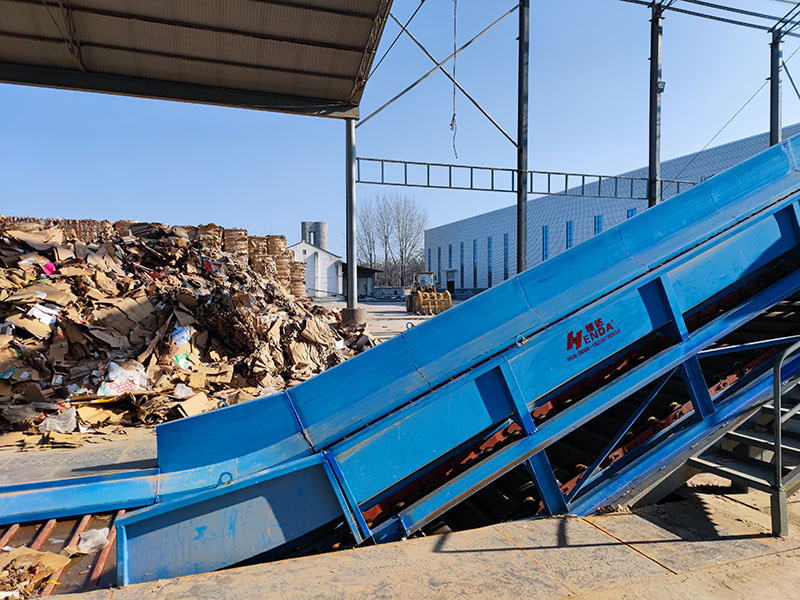

Mainly used for conveying various kinds of pulp board, waste paper in bulk and in the bundle which can be horizontal conveyor or inclined conveyor(<30°)
Adopt specially made chain drive one-time impact stamping, through the plate to convey material, which has advantages of large capacity, low motor power, less wear, reliable operation, and high efficiency.
Detail
Locking bolt, labyrinth designed side guard, Keep clean, Prevent derailment.
High strength and high impact resistance, for heavy loading.
Modular design, pre-running test before delivery, easy installation, and precise.
Technical Data
| Model | BFW1200 | BFW1400 | BFW1600 | BFW1800 | BFW2000 | BFW2200 | BFW2400 |
| Effective width (mm) | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
| Capacity (m3/h) | 60-220 | 80-255 | 95-300 | 110-345 | 140-390 | 160-430 | 200-500 |
| Conveying Materials | waste paper / pulp board / wood chips | ||||||
| Incline | ＜30° | ||||||
| Max.Limit of Material (mm) | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 |
| Motor power(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22-30 | 30-45 |
