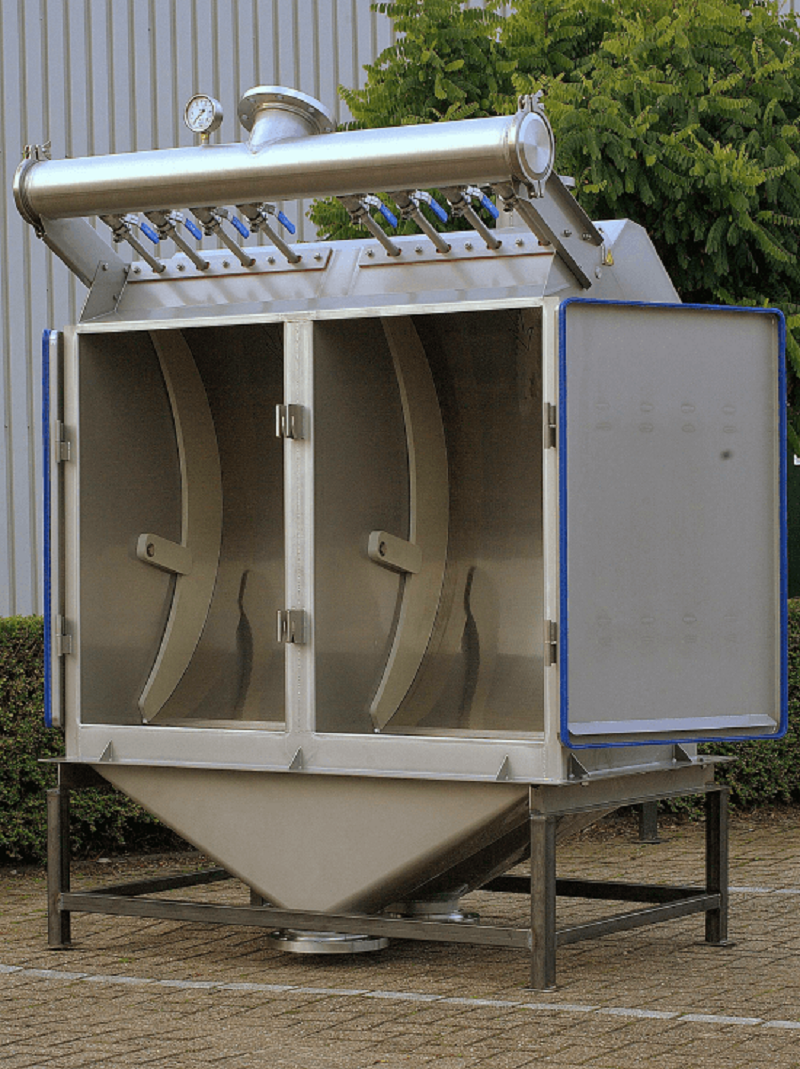

Bow Thickener
Fiber recovery:
white water in various pulping and papermaking processes is treated to recover fibers;
Pulp concentration:
the concentration of good pulp damaged pulp and tail pulp in screening and purification system.
Detail
Salient Features
White water purification:
(1) the paper machine white water purification is used for spray water;
(2) the paper machine presses water purification and reuse
Fiber classification:
(1) long and short fiber classification;
(2) separation of large fiber clusters.
Separation of fiber and filler:
(1) deinking pulp washing;
(2) washing of coated pulp.
Sewage treatment: removal of solid suspended solids.
Technical Data
| Model | BS-1 | BS-2 | BS-3 |
| Area（㎡） | 1.26 | 2.52 | 3.78 |
| Inlet Pressure（Mpa） | 0.15-0.25 | ||
| Inlet Consistency（%） | ≤2.5 | ||
| Throughput (concentrated pulp) （m³/h） | 72-108 | 144-216 | 216-324 |
| Throughput (white water recovery) （m³/h） | 108-180 | 216-360 | 324-540 |
| Slot (concentrated pulp) （mm） | 0.15-0.3 | ||
| Slot (white water recovery) （mm） | 0.075-0.15 | ||
