Bale Breaker
Bale Breaker

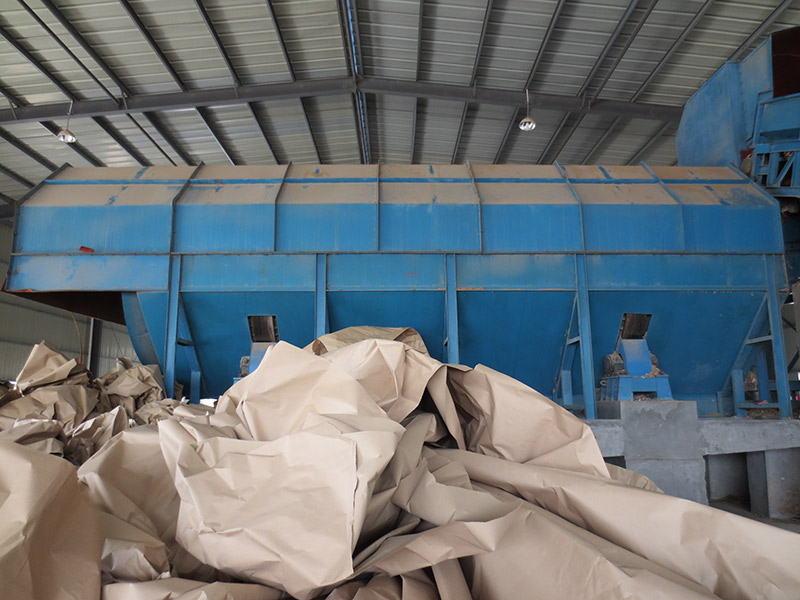

Compact packaging waste paper bales are conveyed from chain conveyor to feed bins, then to Dry screening System for Bale Breaking. Under the reliable mechanical structure of the professional design, the waste paper bales can be broken into sheets in a short time.
The small light and heavy impurity which is mixed up in wastepaper would be screened from a professional design screener.
To remove impurities can reduce wear to the following equipment, such as pulper, cleaner, pulp pump, pipe, pressure screen, pulp refiner. So that the equipment can be protected.

Drop us a line
Detail

Spread dense bale of waste paper fully tied into a sheet, save the usage of the fork, improving the efficiency of the following equipment
Effectively remove dry light and heavy impurities in a dry way, reducing abrasion, improving the quality of pulp
Save labor for classifying and enlarging the value of waste.

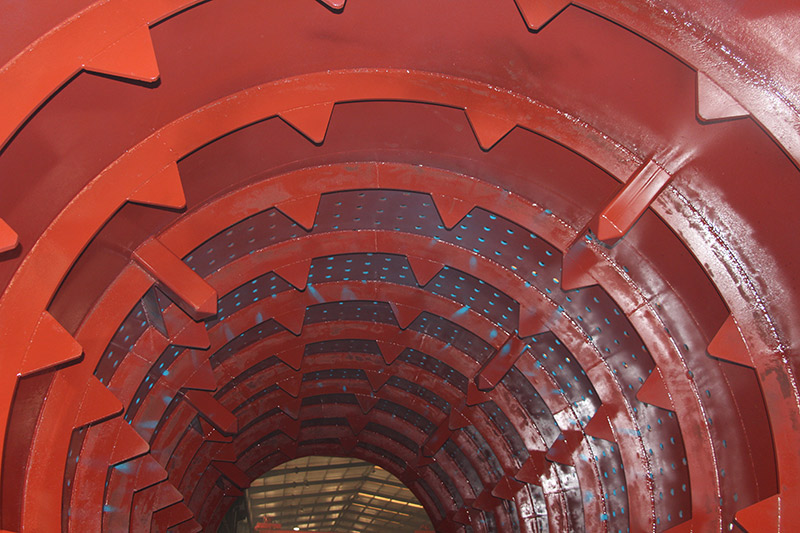

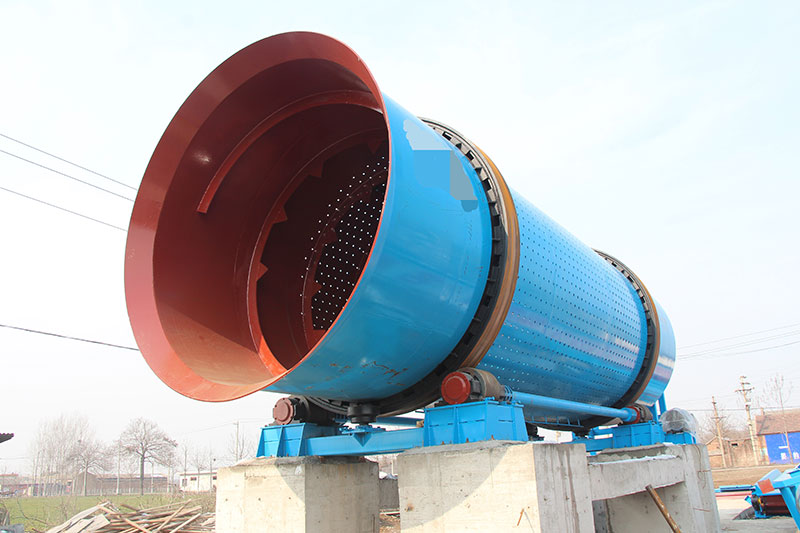

bale breaker 2

bale breaker 3

Technical Data

ModelSBJ3000SBJ3250SBJ3500SBJ3750
Nominal Diameter (mm)Φ3000Φ3250Φ3500Φ3750
Capacity (t/d)220-600260-750300-900330-1100
Feed moisture(%)<15
Motor power (Kw)3730×237×237×2

bale breaker 4
