Pulp Machine

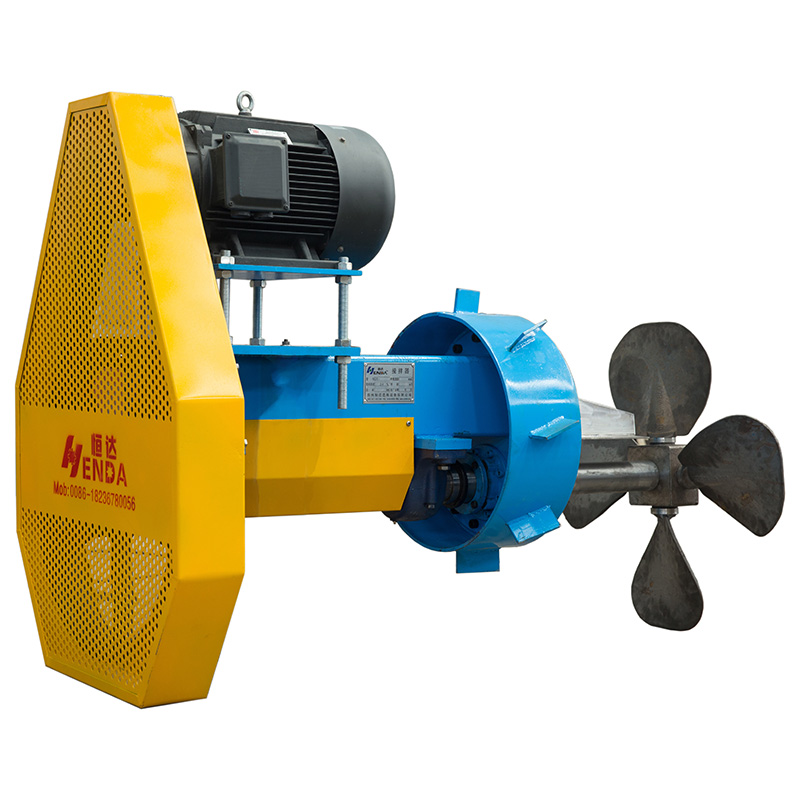

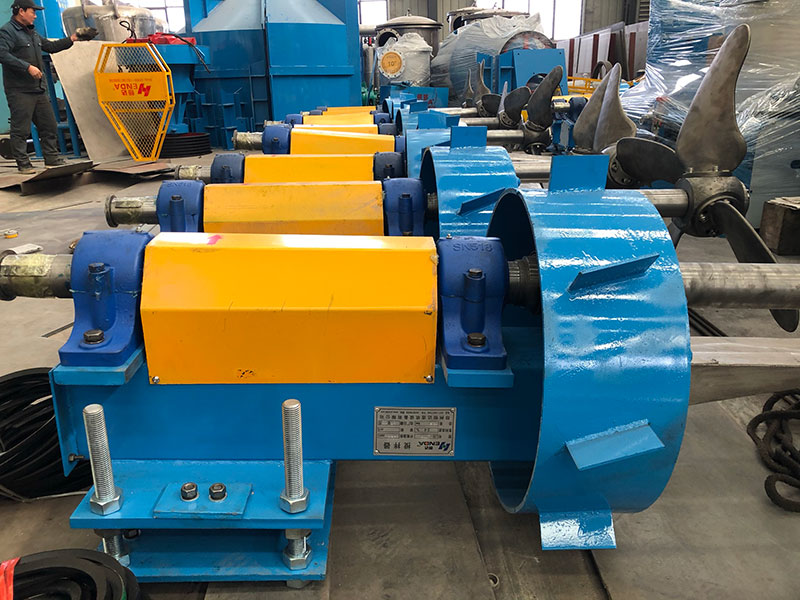

Agitator
It is suitable for mixing the pulp with different concentrations in pulp towers, round pulp tanks, and square pulp tanks. The utility model is hung on the pool wall with a flange and does not need to be fixed with a cement foundation. The utility model has the advantages of a small floor area, convenient installation, and the energy consumption is low.
Detail

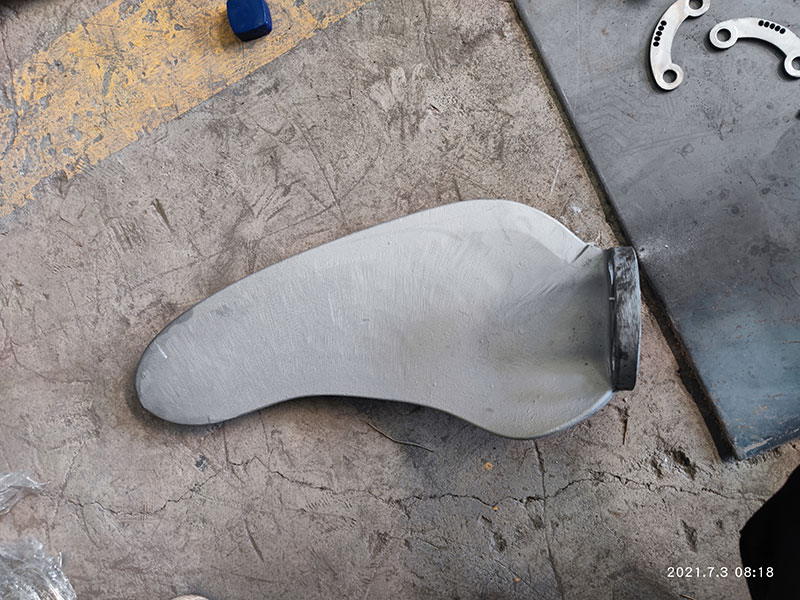

Advanced blade design, strong thrust, and according to different concentrations and pulp adjustment angle, a wide range of application.
The pulp is evenly stirred and the unit energy consumption is low.
Technical Data
| Model | ZJB600 | ZJB800 | ZJB1000 | ZJB1300 | ZJB1600 |
| Impeller diameter：(mm) | 600 | 800 | 1000 | 1300 | 1600 |
| Pulp consistency :(%) | ≤4.5 | ||||
| Volume of pulp chest：(m³) | 20-50 | 50-80 | 80-120 | 100-150 | 150-250 |
| Motor Power：(KW) | 5.5-11 | 5.5-15 | 11-30 | 30-55 | 55-90 |
